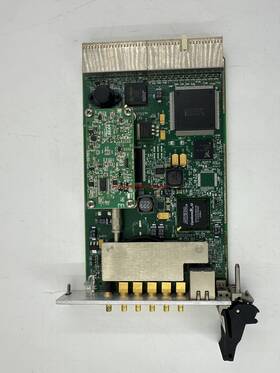

NATIONAL INSTRUMENTS PXI-6682 Ni High Precision Sync Module Completed

( Brand: National Instruments ), ( Manufacturer Part Number: PXI-6682 ), ( Part Type: Module ), ( Country Of Origin: Hungary )

Review NATIONAL INSTRUMENTS Ni High precision Sync Module Test Completed

The **National Instruments PXI-6682** is a high-performance, high-precision **FPGA-based timing and synchronization module** designed to deliver unparalleled accuracy and reliability in demanding test, measurement, and automation applications within the PXI platform. Engineered for engineers and researchers requiring sub-nanosecond timing resolution and deterministic synchronization, this module serves as the backbone of complex multi-channel systems where precise coordination between instruments is critical. Built on NI s advanced **FPGA technology**, the PXI-6682 provides programmable timing, triggering, and synchronization capabilities, enabling seamless integration with other PXI devices, including digital I/O modules, data acquisition systems, and signal generators. Its **dual 10 MHz reference inputs** allow for flexible synchronization with external clocks or other PXI modules, ensuring phase coherence across distributed measurement setups. With **16 high-speed digital I/O lines**, each capable of delivering precise timing signals with sub-nanosecond jitter, the PXI-6682 facilitates real-time event coordination, making it ideal for applications such as radar and sonar simulation, high-speed data acquisition, and advanced communications testing. The module s **PXI Express interface** ensures low-latency communication with a host PC, while its **FPGA-based architecture** allows for customizable timing logic, including programmable delay lines, pulse width modulation, and advanced trigger conditioning. Whether deployed in aerospace and defense systems, automotive electronics validation, or scientific research, the PXI-6682 delivers the timing precision and flexibility required to synchronize even the most complex measurement and control workflows. Its robust construction, combined with NI s industry-leading software ecosystem including LabVIEW, LabWindows/CVI, and NI-DAQmx makes it a versatile tool for developers seeking to push the boundaries of timing accuracy in their applications.

### **Pros and Cons of buying a National Instruments PXI-6682 NI High-Precision Sync Module**

1. **High Precision Timing and Synchronization** The PXI-6682 provides sub-nanosecond-level synchronization, making it ideal for applications requiring precise timing coordination between multiple instruments or systems. This is particularly useful in test and measurement, aerospace, defense, and industrial automation where timing accuracy is critical.

2. **Compatibility with NI Platform** As part of the National Instruments ecosystem, it integrates seamlessly with LabVIEW, NI-FPGA, and other NI tools, simplifying development and reducing integration challenges. This compatibility extends to PXI systems, allowing for modular and scalable test setups.

3. **Flexible Triggering and Synchronization Capabilities** The module supports advanced triggering (e.g., software, hardware, or time-based) and can synchronize multiple devices across distributed systems. This is beneficial for multi-channel acquisitions, distributed sensor networks, or coordinated control systems.

4. **Low Latency and High Throughput** With minimal jitter and fast response times, the PXI-6682 ensures real-time synchronization without significant delays, which is essential for high-speed data acquisition or control applications.

5. **Rugged and Reliable Design** Built for industrial and laboratory environments, the module is designed to withstand harsh conditions, ensuring long-term reliability in demanding applications.

6. **Software-Defined Functionality** Users can reprogram the FPGA logic via LabVIEW FPGA or NI LabVIEW, allowing customization for specific synchronization protocols or advanced timing algorithms.

7. **Scalability and Modularity** The PXI form factor allows for easy integration into existing PXI systems, enabling the addition of more modules as requirements grow without major infrastructure changes.

8. **Support for Advanced Protocols** The module supports PXI*Sync, LXI, and other industry-standard synchronization protocols, making it versatile for different use cases, including distributed test systems.

9. **Reduced Wiring Complexity** By centralizing synchronization, it minimizes the need for extensive cabling between devices, reducing signal noise and simplifying system setup.

10. **Backward and Forward Compatibility** NI s ecosystem ensures that the PXI-6682 remains relevant with future software updates and hardware expansions.

---

1. **High Cost** The PXI-6682 is a premium product, and its price may be prohibitive for small businesses, startups, or budget-conscious projects. The cost includes not only the module itself but also potential licensing fees for NI software.

2. **Dependency on NI Ecosystem** While the integration with NI tools is a strength, it can also be a limitation if the user is not already invested in LabVIEW or NI hardware. Transitioning from other platforms (e.g., MATLAB, Python-based systems) may require additional learning or adaptation.

3. **Complexity for Non-Experienced Users** Developing custom synchronization logic or FPGA programs requires familiarity with LabVIEW FPGA or hardware description languages (HDLs), which may be a steep learning curve for users without a strong engineering background.

4. **Limited Off-the-Shelf Alternatives** For users seeking lower-cost or open-source solutions, alternatives like FPGA boards (e.g., Xilinx/Zynq) or custom timing solutions may offer more flexibility, though they often lack the ease of use and support of NI s ecosystem.

5. **Power and Space Requirements** The PXI form factor requires a PXI chassis, which adds to the overall system footprint and power consumption. This may not be feasible for compact or portable applications.

6. **Licensing Costs** While the hardware itself is expensive, additional software licenses (e.g., LabVIEW, FPGA Module) can further increase the total cost of ownership.

7. **Potential for Overkill in Simple Applications** If the application does not require sub-nanosecond precision or advanced synchronization, the PXI-6682 may be unnecessarily complex and costly compared to simpler timing solutions (e.g., GPS-disciplined oscillators or basic trigger cables).

8. **Vendor Lock-In** Heavy reliance on NI s hardware and software can create dependency risks if the user later needs to switch to a different platform or vendor.

9. **Maintenance and Support Costs** As with any high-end equipment, maintenance, calibration, and technical support may incur additional expenses over time.

10. **Learning Curve for Advanced Features** While basic synchronization is straightforward, leveraging the full potential of the module (e.g., custom FPGA logic, distributed timing) requires expertise in embedded systems or FPGA programming.

---

### **Conclusion**

The **National Instruments PXI-6682** is a powerful and precise synchronization module ideal for applications demanding sub-nanosecond timing accuracy, such as aerospace testing, high-speed data acquisition, or distributed control systems. Its seamless integration with the NI ecosystem, advanced triggering capabilities, and rugged design make it a robust choice for professionals working in research, industrial automation, or defense. However, its high cost, complexity for non-experts, and dependency on NI tools may not justify the investment for smaller projects or users with simpler synchronization needs.

For users already invested in the NI platform and requiring high-precision timing, the PXI-6682 is a **strong recommendation**. For those on a tight budget, seeking open-source alternatives, or working with simpler timing requirements, exploring lower-cost solutions (e.g., GPS-disciplined oscillators, FPGA boards, or basic trigger systems) may be more practical.

Ultimately, the decision should be based on the specific synchronization demands, budget constraints, and long-term system scalability. If precision and NI compatibility are non-negotiable, the PXI-6682 is a reliable and future-proof choice. Otherwise, evaluating alternatives may yield a more cost-effective solution.
