ALLEN-BRADLEY PN-201427 Voltage Sensing Power Monitor Module 1426-M5E 5000

( Brand: Allen-bradley ), ( Manufacturer Part Number: PN-201427 ), ( Model: 1426-M5E ), ( Type: Power Monitor ), ( Analog/digital: Digital ), ( Controller Platform: Voltage Sensing )

Review ALLEN BRADLEY Voltage Sensing Power Monitor 5000 Basic Module

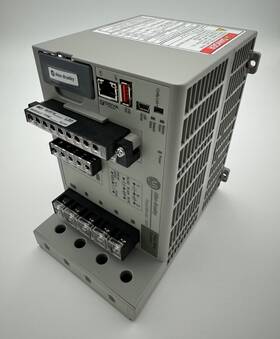

Allen-Bradley PN-201427 1426-M5E Voltage Sensing Power Monitor 5000 Module

The Allen-Bradley PN-201427 1426-M5E Voltage Sensing Power Monitor 5000 Module is a cutting-edge electrical monitoring device engineered for maximizing system efficiency and reliability in industrial applications. This module is part of the Power Monitor family from Rockwell Automation's Allen-Bradley brand.

The 1426-M5E module provides real-time voltage monitoring with an impressive accuracy of 0.5% of full scale, ensuring precise measurement and control of your electrical systems. It is designed to monitor voltages up to 600V, making it suitable for a wide range of industrial power distribution systems.

This module features a compact design, measuring only 5.08 x 5.08 x 1.83 inches (129.0 x 129.0 x 46.5 mm), allowing for easy integration into existing control panels or new installations. It is built with high-quality components to withstand harsh industrial environments, offering a long lifespan and reduced maintenance requirements.

The 1426-M5E module communicates seamlessly with Allen-Bradley ControlLogix, CompactLogix, and GuardLogix controllers, as well as other Rockwell Automation control platforms, enabling seamless integration with your existing control systems. It supports a wide range of communication protocols, including ControlNet, EtherNet/IP, DeviceNet, and Modbus.

1. Voltage monitoring with 0.5% of full scale accuracy

2. Supports voltages up to 600V

3. Compact design for easy integration

4. Built to withstand harsh industrial environments

5. Seamless communication with Allen-Bradley and other Rockwell Automation control platforms

6. Supports various communication protocols, including ControlNet, EtherNet/IP, DeviceNet, and Modbus

In summary, the Allen-Bradley PN-201427 1426-M5E Voltage Sensing Power Monitor 5000 Module is a reliable and versatile electrical monitoring solution designed to improve system efficiency, reduce downtime, and ensure the smooth operation of your industrial electrical systems.

The Allen-Bradley PN-201427 1426-M5E Voltage Sensing Power Monitor 5000 Module is a specialized device designed to monitor and analyze electrical power in industrial systems. Here are some pros and cons to consider before making a purchase:

1. Accurate measurement: The device provides precise voltage, current, and power measurements, which is essential for maintaining system efficiency and preventing potential issues.

2. Flexible installation: The module can be installed in various locations, including motor control centers and panelboards, catering to different industrial applications.

3. Diagnostic capabilities: The power monitor offers advanced diagnostic features, such as alarms, trend analysis, and event logging, which help in identifying and resolving power-related problems promptly.

4. Compatibility: The Allen-Bradley power monitor is compatible with Rockwell Automation's Integrated Architecture system, enabling seamless integration with other automation components.

1. Cost: This power monitoring device is relatively expensive compared to other basic power meters, which may make it unaffordable for smaller-scale industrial applications.

2. Complex setup: The device requires specialized knowledge to configure and program, which can be challenging for inexperienced users or smaller businesses without dedicated engineering staff.

3. Limited connectivity: The module lacks built-in wireless connectivity options, which can be a drawback for those looking for remote monitoring capabilities.

The Allen-Bradley PN-201427 1426-M5E Voltage Sensing Power Monitor 5000 Module is an excellent choice for medium to large-scale industrial applications that require precise power monitoring and advanced diagnostic capabilities. However, for smaller businesses with limited budgets or technical expertise, a more affordable and user-friendly power meter might be a more suitable option. It is essential to weigh the pros and cons carefully and consider the specific needs of your industrial application before making a purchase decision.

Details:

These protocols and functions are supported: Ethernet/IP network web page for configuration data access Ethernet indicators LNK indicator Solid GREEN: IP link established Off: No ACT Flashing YELLOW: Data present on port activity present, USB host port: standard A receptacle. 240V AC, 50/60 Hz, or 120. Control power and ground wiring terminals: 120. USB device port: The port is a mini-B receptacle that accepts standard plugs, for connection to host device, such as notebook computer.

Not used in this model. Power: Power status OFF: no control power GREEN: is present, Current sensing wiring terminals: Nominal input current 5 A, Use transformers CTS to connect system, Configuration lock switch: When enabled, this switch helps prevent changes in configuration that can affect revenue accuracy. 240V DC 24V DC, Virtual wiring correction indicator: Use current transformers CTS to connect power system, voltage sensing terminals: Direct up 690V AC 3-phase line Maximum nominal ground voltage 690 potential Pt's for higher voltage s Neutral and connections, Device status indicators: OFF: No control Flashing GREEN/RED: Self-test GREEN: Power monitor has not been configured is running RED: detected a recoverable minor fault non-recoverable major fault, Ethernet network port - standard RJ45 jack with hardware included on all model's.

part #: pn201427 prices

• $600.00-$2200.00

specifications sensoindustria:

• brand: Allen-bradley
• mpn: Pn-201427
• model: 1426-m5e
• type: Power Monitor
• analog/digital: Digital
• controller platform: Voltage Sensing

shipping sensoindustria:

• class: Standard
• service: USPS Ground Advantage
• transit: 5-9 Days
• carrier: USPS
• cost: $6.76
• type: Calculated

seller sensoindustria:

• # reviews: 104
• city: Saint Paul, Minnesota
• rating: 100.0%

offer sensoindustria:

• availability: In Stock
• sold: 0
• options: Ship-to-home
• started: August 15, 2024
• quantity: 1

returns sensoindustria:

• policy: No Returns

general sensoindustria:

• PLCs HMIs > PLC Peripheral Modules > PLC Input Output Modules
• condition: Used

payments sensoindustria:

• wallet: Google-pay
• other
• credit card: Mastercard
