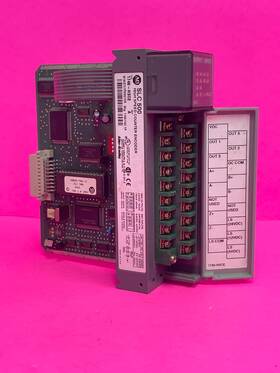

ALLEN-BRADLEY 1746-HSCE-A Slc Single Channel High Counter 1746-HSCE/A /a 500 1-IN/4-OUT

( Brand: Allen-bradley ), ( Manufacturer Part Number: 1746-HSCE/A ), ( Part Type: Counter ), ( Controller Platform: Slc 500 )

Review ALLEN BRADLEY 1746-hsce/a /a Slc 500 Single channel High speed Counter 1-in/4-out

The **Allen-Bradley 1746-HSCE/A** is a high-performance single-channel high-speed counter module designed for integration into the **SLC 500** programmable logic controller (PLC) series, offering precise and reliable counting capabilities for a wide range of industrial applications. This compact yet robust module is engineered to interface seamlessly with the 1746 series of Allen-Bradley controllers, providing real-time input/output functionality for monitoring and controlling high-speed events such as shaft encoders, pulse trains, or other discrete signals. With a single-channel input configuration, the 1746-HSCE/A is optimized for applications requiring accurate pulse counting, direction sensing, and speed measurement, making it an ideal solution for motion control, process automation, and machine monitoring systems.

The module features a **1-in/4-out** signal interface, allowing it to accept a single high-speed input signal while providing four discrete outputs for control or status indication. The input channel is capable of handling high-frequency pulses at speeds up to **500 kHz**, ensuring minimal latency and maximum accuracy for demanding applications such as CNC machines, conveyor systems, or robotic motion control. The module supports both **positive and negative edge triggering**, enabling flexible configuration for different signal types, including TTL, NPN, or PNP inputs, depending on the application requirements. Additionally, the 1746-HSCE/A includes built-in **quadrature decoding** for encoder inputs, allowing it to interpret two-phase signals (A and B channels) for precise position tracking and direction detection, which is essential for closed-loop motion control systems.

Designed with industrial durability in mind, the 1746-HSCE/A is housed in a rugged **1746 series module chassis**, ensuring compatibility with the same mounting and cooling standards as other SLC 500 components. The module operates within a wide temperature range, typically from **-20 C to 60 C**, making it suitable for harsh environments such as manufacturing plants, automotive assembly lines, or food and beverage processing facilities. Its **isolated inputs and outputs** enhance safety and reduce noise interference, while the **backplane communication** with the SLC 500 controller ensures fast and reliable data transfer, minimizing processing delays. The module also supports **scalable counting ranges**, allowing users to configure it for applications requiring counts from **0 to 32,767** or **0 to 65,535**, depending on the specific configuration settings.

For enhanced functionality, the 1746-HSCE/A integrates seamlessly with **Allen-Bradley s RSLogix 500** programming software, enabling engineers to easily configure and monitor the counter module through intuitive ladder logic or structured text programming. The module s **diagnostic capabilities** include built-in fault detection for issues such as input signal loss, overcounting, or communication errors, providing real-time feedback to operators and maintenance personnel. This level of monitoring helps prevent downtime and ensures optimal performance in critical applications. Whether used for **speed monitoring, position feedback, or event counting**, the 1746-HSCE/A delivers a balance of precision, reliability, and ease of integration, making it a versatile and cost-effective solution for modern industrial automation systems.

### **Pros and Cons of buying a Allen-Bradley 1746-HSCE/A (Single-Channel High-Speed Counter)**

#### **Pros**

1. **High-Speed Counting Capability**

The 1746-HSCE/A is designed for high-speed counting applications, capable of handling input frequencies up to **1 MHz** (depending on configuration). This makes it suitable for precise motion control, encoder feedback, and high-speed monitoring in industrial automation.

2. **Compatibility with SLC 500 Series**

It is specifically engineered for use with the **Allen-Bradley SLC 500 programmable logic controller (PLC)**, ensuring seamless integration with existing SLC 500 systems. This reduces the need for additional hardware or software modifications.

3. **Single-Channel Design with Flexible I/O**

The module provides **one high-speed input (1-in)** and **four standard digital outputs (4-out)**, allowing for basic counting and control functions without requiring additional modules. This simplifies wiring and reduces system complexity for simpler applications.

4. **Reliable and Rugged Construction**

Allen-Bradley modules are known for their durability and resistance to environmental factors such as temperature fluctuations, vibration, and electrical noise. This ensures long-term reliability in industrial settings.

5. **Easy Integration with RSLogix 500 Software**

The module is fully supported by **RSLogix 500**, Allen-Bradley s programming environment for SLC 500 PLCs. This allows for straightforward configuration, monitoring, and troubleshooting through the familiar interface.

6. **Cost-Effective for Basic High-Speed Applications**

Compared to more advanced high-speed counter modules (e.g., those with multiple channels or advanced features), the 1746-HSCE/A offers a **budget-friendly solution** for applications requiring only a single high-speed input.

7. **Backward and Forward Compatibility**

The module is designed to work with older SLC 500 models as well as newer versions, ensuring longevity and reducing the risk of obsolescence.

---

#### **Cons**

1. **Limited to Single-Channel Counting**

The module only supports **one high-speed input**, which restricts its use to applications requiring only a single counting channel. For multi-axis or multi-channel applications, additional modules (e.g., 1746-HSCE/B for two channels) would be necessary.

2. **No Built-In Advanced Features**

Unlike newer high-speed counter modules (e.g., those in the **ControlLogix** or **CompactLogix** families), the 1746-HSCE/A lacks advanced features such as:

- **Pulse stretching** (for encoder resolution enhancement).

- **Built-in quadrature decoding** (requires external logic for bidirectional counting).

- **High-speed output capabilities** (only standard digital outputs are available).

- **Network integration** (e.g., Ethernet/IP or DeviceNet support).

3. **Deprecated Technology**

- **Limited technical support** compared to newer PLC platforms.

- **No future firmware updates** or security patches.

- **Potential difficulty finding spare parts** as Rockwell shifts focus to newer products like **CompactLogix, ControlLogix, or Micro800**.

4. **Lower Processing Speed Compared to Modern Alternatives**

The SLC 500 s processing power is **significantly lower** than that of modern PLCs (e.g., ControlLogix with **100 MHz** processing vs. SLC 500 s ** 10 MHz**). This can lead to slower scan times and reduced performance in complex applications.

5. **No Built-In Diagnostics or Advanced Monitoring**

Modern high-speed counter modules often include **self-diagnostics, error logging, and remote monitoring capabilities**. The 1746-HSCE/A lacks these features, making troubleshooting more dependent on manual inspection.

6. **Limited Expansion Options**

The SLC 500 platform has **fewer expansion options** compared to newer systems. Adding high-speed counters, communication modules, or additional I/O may require proprietary or outdated hardware.

7. **Potential Compatibility Issues with Newer Software**

While RSLogix 500 is still functional, newer versions of **Studio 5000** (used for ControlLogix/CompactLogix) may not fully support legacy SLC 500 modules, requiring separate software licenses.

---

### **Conclusion**

The **Allen-Bradley 1746-HSCE/A** is a **functional and reliable** high-speed counter module for **SLC 500-based systems** where only a single high-speed input is required. It remains a **cost-effective solution** for applications such as:

- **Basic encoder counting** (e.g., motor speed monitoring).

- **High-speed pulse counting** (e.g., conveyor belts, packaging machines).

- **Legacy automation systems** where upgrading is not feasible.

However, its **single-channel limitation, lack of advanced features, and reliance on outdated technology** make it **less ideal** for modern or complex applications. If your system requires **multi-channel counting, quadrature decoding, or integration with newer communication protocols**, investing in a **modern high-speed counter module (e.g., 1756-HSC or a ControlLogix-based solution)** would be more advantageous in the long run.

---

### **Recommendation**

- You are **maintaining or upgrading an existing SLC 500 system**.

- Your application **only requires a single high-speed input** (e.g., basic speed monitoring).

- You **cannot afford or justify** migrating to a newer PLC platform.

- Cost is a **primary concern**, and the module meets your current needs.

- You need **multi-channel counting** (consider **1746-HSCE/B or newer modules**).

- Your application requires **quadrature decoding, pulse stretching, or advanced diagnostics**.

- You plan to **expand the system** in the future, as newer PLCs offer better scalability.

- You want **long-term support, security updates, or integration with modern HMI/SCADA systems**.

- Your budget allows for a **modern high-speed counter module** (e.g., **1756-HSC** for ControlLogix or **Micro800-based solutions**).

- If you need **two high-speed inputs**, consider the **1746-HSCE/B**.

- For **basic counting with more flexibility**, evaluate **1746-IO16B** (16-point I/O) combined with external logic.

- **ControlLogix/CompactLogix:** Use **1756-HSC** (high-speed counter module) for multi-channel counting.

- **Micro800:** If budget is tight, the **Micro850** with built-in high-speed counting capabilities may suffice.

- **Rockwell Automation s Newer PLCs:** Consider **Studio 5000** with **Ethernet/IP-based high-speed modules** for future-proofing.

- If bidirectional counting is needed, pair the 1746-HSCE/A with **external logic** (e.g., ladder logic to decode quadrature signals) or invest in a **modern encoder interface module**.

Ultimately, while the **1746-HSCE/A is a solid choice for its intended purpose**, the **long-term viability of the SLC 500 platform** should be carefully considered before purchasing. If possible, aligning with **modern automation standards** will provide better support, flexibility, and scalability.
